Continuous Vertical Conveyor System
Uninterrupted Vertical Transport for Modern Industries
What is a Continuous Vertical Conveyor?
A Continuous Vertical Conveyor (CVC) is a specialized material handling system designed for continuous, uninterrupted transport of goods between multiple vertical levels in industrial facilities. Unlike traditional lifts or elevators, CVC systems allow products to move smoothly and continuously, enabling high-throughput operations in warehouses, manufacturing plants, and distribution centers.
These conveyors can handle a variety of products, including cartons, crates, pallets, and irregular-shaped items, ensuring stability and minimizing the risk of damage during vertical movement. Continuous vertical conveyors are highly customizable and integrable with horizontal conveyors, automated sorters, robotic stations, and palletizing systems, creating a fully automated and scalable material handling solution. By reducing manual handling and maintaining a consistent flow of materials, CVC systems improve operational efficiency, optimize space utilization, and increase productivity, making them essential for modern, high-efficiency industrial operations.
Types of Continuous Vertical Conveyor System

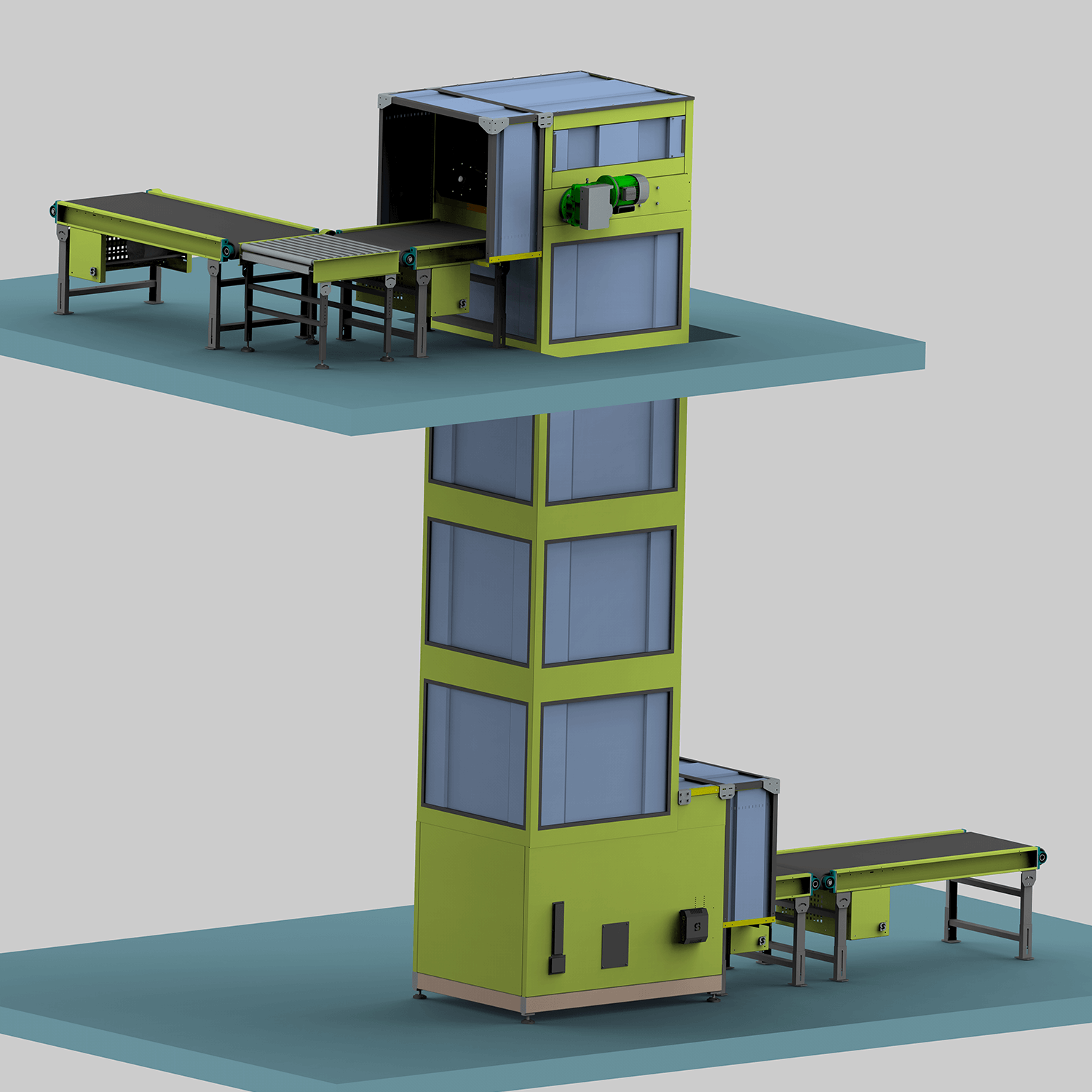

Z-Shape Vertical Conveyor
A Z-Shape Vertical Conveyor is a versatile material handling system designed to transport products efficiently between different vertical levels while changing horizontal direction in a compact footprint. Its Z-shaped configuration allows for smooth movement of boxes, cartons, pallets, and other packaged goods, making it ideal for space-constrained facilities such as warehouses, distribution centers, and manufacturing plants.
Key Features and Benefits
Energy Efficiency
No need for electricity, reducing operational costs.
Low Maintenance
Simple design with minimal moving parts, leading to lower maintenance requirements.
Easy Installation
Quick to install and integrate into existing systems, with minimal disruption.

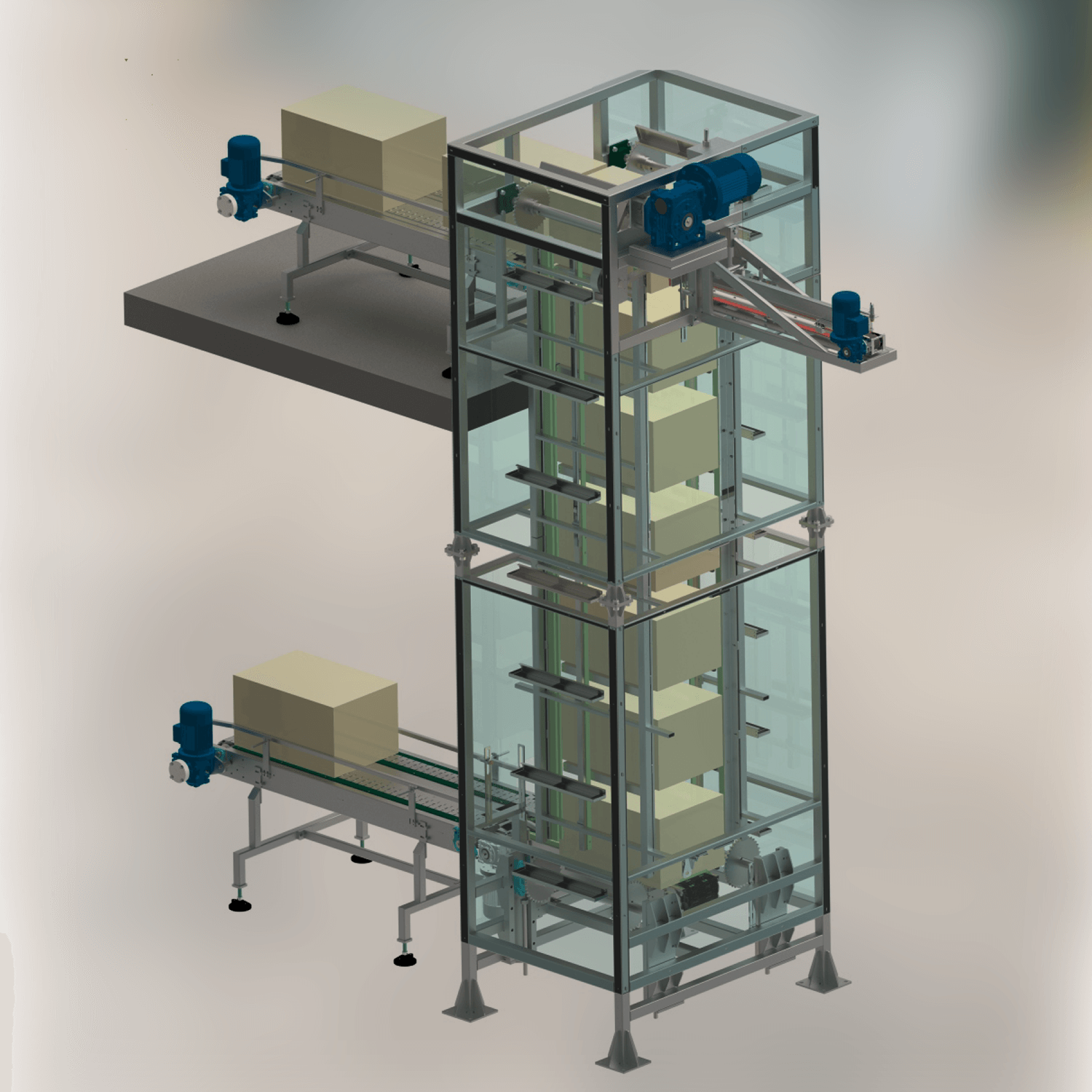

C-Shape Vertical Conveyor
A C-Shape Vertical Conveyor is an innovative material handling solution designed to transport products vertically while incorporating a horizontal directional shift, providing a compact and efficient conveyor layout. Its C-shaped configuration allows smooth, continuous movement of cartons, crates, pallets, and other packaged goods, making it ideal for space-constrained manufacturing plants, warehouses, and distribution centers
Key Features and Benefits
High Throughput
Capable of moving large volumes of products quickly and efficiently.
Adjustable Speed
Allows for customizable speed settings to match the pace of your operations.
Heavy Load Capacity
Designed to handle various items, making it suitable for industrial environments.
Applications Across Industries
Manufacturing
Ideal for moving parts and assemblies between different levels in a production line.
Food and Beverage
Ensures hygienic and efficient transport of food products between processing stages.
Pharmaceuticals
Safely moves pharmaceutical products in cleanroom environments, maintaining compliance with strict industry standards.
Technical Data for Spiral Conveyors
| Specification | Z-Shape Vertical Conveyor | C-Shape Vertical Conveyor |
|---|---|---|
| Conveyor Type | Z-Shape Vertical Conveyor | C-Shape Vertical Conveyor |
| Frame / Structure Material | Mild Steel (MS) / Stainless Steel (SS) | Mild Steel (MS) / Stainless Steel (SS) |
| Load Capacity | Heavy-duty, customizable based on product type | Heavy-duty, customizable based on product type |
| Conveyor Length | Customized as per facility layout | Customized as per facility layout |
| Conveyor Width | Adjustable depending on product size | Adjustable depending on product size |
| Vertical Rise / Drop | Based on required height between levels | Based on required height between levels |
| Conveyor Speed | Adjustable; ensures smooth product flow | Adjustable; ensures smooth product flow |
| Drive Type | Motorized / Chain driven | Motorized / Chain driven |
| Product Types | Cartons, crates, pallets, irregular-shaped items | Cartons, crates, pallets, irregular-shaped items |
| Control / Automation | PLC / Automated control; integrates with assembly & sortation | PLC / Automated control; integrates with assembly & sortation |
| Applications | Warehousing, Manufacturing, Logistics, Distribution Centers | Warehousing, Manufacturing, Logistics, Distribution Centers |
| Key Advantage | Vertical and horizontal directional change in compact space | Vertical transport with horizontal shift in a compact layout |
| Maintenance | Low-maintenance, durable construction | Low-maintenance, durable construction |
